Multisistem
In any drive application, Multisistem offers the widest range of high-performing
profiles, allowing the greatest technological choice.

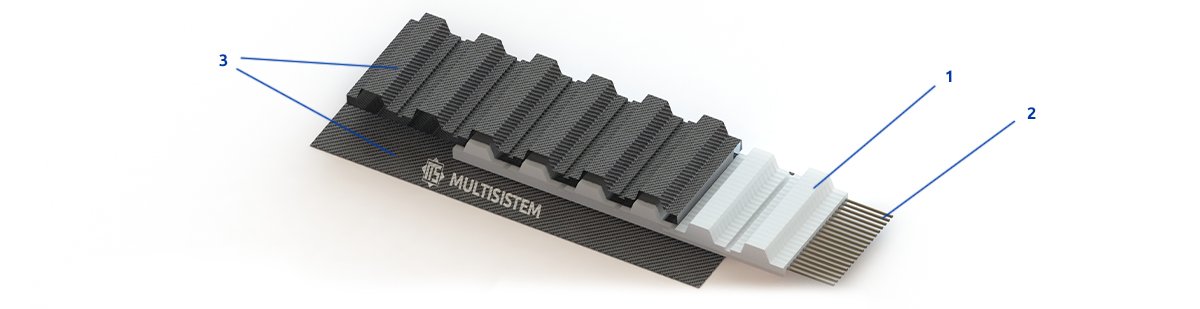

Belt structure
1) Body made of thermoplastic polyurethane 92 ° Sh.A with high wear resistance.
2) Steel tension Steel tension wires that have a high elastic modulus and tensile strength.
3) PAZ fabric on the teeth, PAR fabric on the back, ) PAZ fabric on the teeth, PAR fabric
on the back, or PAZ-PAR fabric (on back and toothing), utilized upon request to: lower the coefficient of
friction; boost tooth engagement; and lower noise.
Multisistem belts may be offered with unique cords in order to best meet
the requirements of the application:
• HFE high flexibilty: These allow the use of pulleys and idlers with up to 30%
smaller diameters than usual.
• HPL high resistance: When compared to a regular belt, the cord's cross section is
larger, which reduces belt elongation and improves positioning accuracy.
• HPFE high resistance and flexibility: This type of cord combines a high degree of
rigidity with improved flexibility.
• Stainless Steel: : Useful in harsh settings or for applications involving food.
• Aramid fiber: The belt is lightweight, non-magnetic, and flexible.
For applications requiring high temperature, low temperature, food
compatibility (FDA), or antistatic qualities, special materials are available.
• Extremely stable length;
• Minimum depreciation of tension; accuracy.
• High resistance to abrasion;
• High accuracy angular and linear positioning;
• Low-key operations;
• Free of maintenance
• Age-, ozone-, and hydrolysis-resistant;
• Working in a range of -25 to +80 ℃;
• A high level of resistance to fats, oils, and hydrocarbons;
• A high level of acid and alkali resistance;
• Compatibility with additional thermoplastic materials;
• Executions include silicon-free, FDA-approved, and antistatic options.
• Automatic doors;
• Elevators;
• Automated handling devices;
• Linear guides;
• Logistics;
• Positioning systems;
• Shipping lines;
• Wood industry;
• Textile industry;
• Screen printing industry;
• Glass industry;
• Marble and stone industry;
• Packaging industry;
• Robotic systems;
• Tobacco industry;
• Paper industry;
• Chemical and pharmaceutical industry

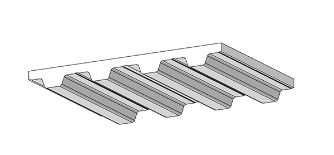

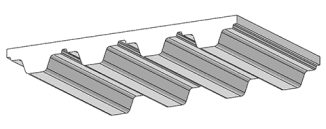

T

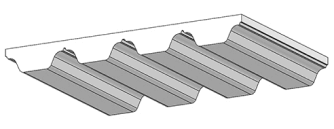

AT

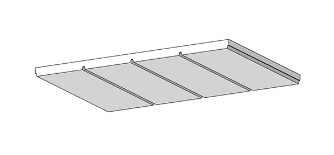

FLAT

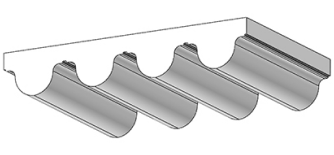

HTD

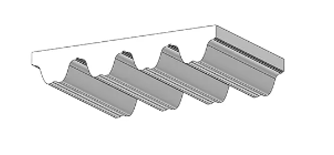

RPP

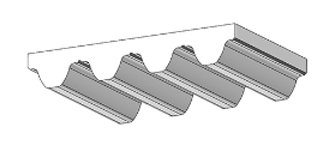

STD
MXL-XL-L -H -XH -XXH
